Projects: Rat Roaster

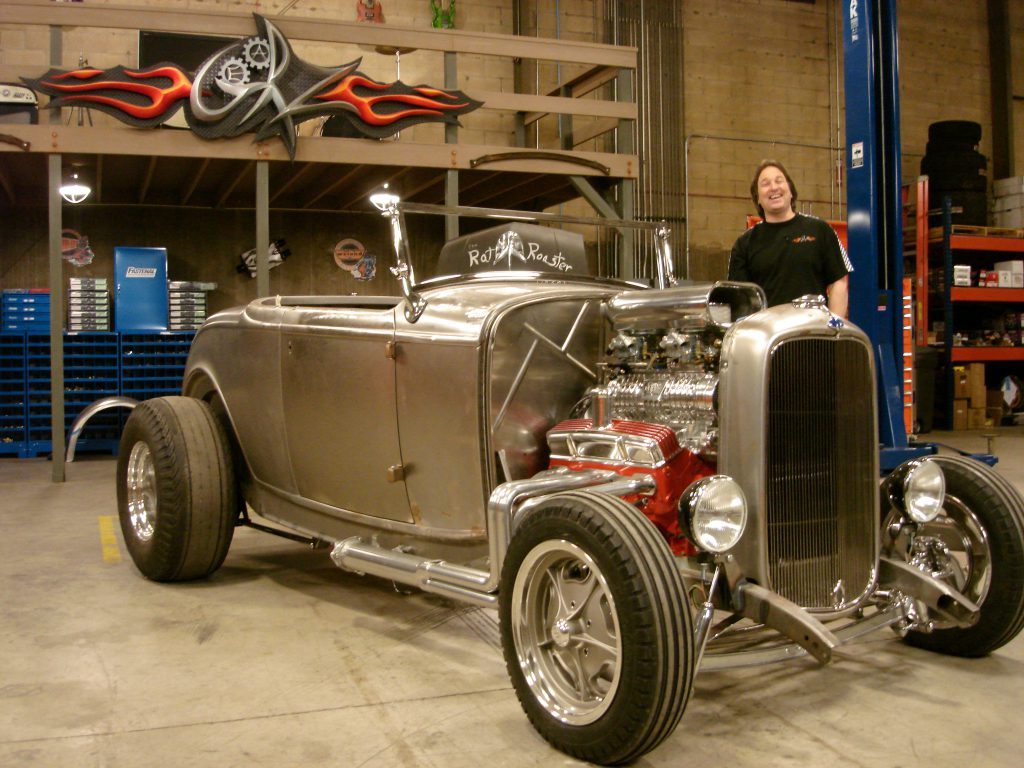

Rat Roaster

1932 Ford Roadster

The trend in Hot Rodding for the last few years has been to build a car that had a ‘40’s or 50’s vibe to it... And that’s a cool look. However, I have always liked the late ‘60’s era when Drag Racing was King and you had some really wild things running down the strip like Blown front engine dragsters and Fuel Altereds.  During this time, their weren’t a lot of Hot Rods roaming the streets because the Muscle car was King. So the idea behind the Rat Roaster was to take the thought of American Graffiti and drop in into the late ‘60’s instead of the early 60’s. If the Baddest car in the Valley in 1969 was a ’32 Ford roadster,... what would it have looked like? The Rat Roaster  was designed to be THAT car.  The criteria was pretty simple, number one...It would have to be something that would out run the hottest Muscle car on the street or strip by at least a second or two. Number two... It would have to have enough “WOW” in the engine to make people walk past Hemi’s and Tri-powers to come and stare at it.  Number three... it would still have to be affordable for a young Hot Rodder to build and own, so no exotic blown Hemi’s or Cammers. The only engine that would have fulfilled all three of these criteria in 1969 was a blown small-block Chevy.

It would also have to have more visual pop then a GTO Judge or Mach1, or Roadrunner, so a bright candy looking paint job was a must. It also had to reflect the Rock and Roll mentality of the times so bobbed fenders, side pipes, diamond tuft upholstery, and guitar and music accents were a must.

Paint Code

Rat Roaster Green

Credit:
Custom Color created by Stacey David and Ron Payton of PPG

1 QUART FORUMLA

CODE

COLOR

CUM.

PARTS

DM649

Clear

144.6

144.6

DM650

Coarse Aluminum

377.5

232.9

DMD1693

Green

485.9

108.4

DMD1683

Black

498.8

12.9

DMX210

Yellow

553.0

54.2

VM4146

Flamboyance Green

563.0

10.0

DBX1689

Clear

987.1

424.1

DMD1678

Green

1028.5

41.4



Specifications

Body Parts
Polished triangulated four-link rear suspension TOTAL COST INVOLVED
Steering damper SO-CAL SPEED SHOP
Chrome rack and pinion steering box UNISTEER PERFORMANCE PRODUCTS
Metal and interior work HOT ROD INSTITUTE
Polished stainless steel I-beam front suspension with hairpins TOTAL COST INVOLVED
Paint and body work HOT ROD INSTITUTE
Upholstery for convertible top Midwest Hot Rods
32 Ford rear lower body extensions STEVE'S AUTO RESTORATION, INC
32 Ford fully boxed frame Brookville Roadsters
Rear fenders Brookville Roadsters
Folding convertible top w/ 3” chop and side curtains SUPERIOR CAR PARTS
Chrome 3” chop windshield Brookville Roadsters
Front fenders Russ Wernimont Designs
All steel 32 Ford roadster body with rumble seat Brookville Roadsters
34 Ford exterior door handles Brookville Roadsters
Four piece hood with hot rod louvers Brookville Roadsters
Stainless Steel front and rear spreader bars Brookville Roadsters
51 Pontiac taillights Brookville Roadsters
King Bee headlights Brookville Roadsters
32 Ford grille shell and polished stainless steel grille w/crank hole Brookville Roadsters
32 ford Gas tank Brookville Roadsters
9” Ford rearend with forged 31 spline axles and 3:50 gears CURRIE ENTERPRISES
Brakes
Proportioning valve and Residual valves STAINLESS STEEL BRAKES CORP.
Stainless steel e-brake cables LOKAR, INC.
Polished aluminum master cylinder STAINLESS STEEL BRAKES CORP.
Rear disc brakes with e-brake STAINLESS STEEL BRAKES CORP.
Front disc brakes with drilled and slotted rotors and 4 piston calipers WILWOOD BRAKES
Engine
Blower throttle linkage LOKAR, INC.
Stainless Steel fuel line and hoses EARL'S PLUMBING
V8 Radiator with dual electric fans Walker Radiator
Custom “Rat Roaster” side headers SANDERSON HEADERS
Custom dual exhaust system Cherry Bomb Performance Exhaust
Mallory distributor and E-coil MALLORY IGNITION
Aluminum AN fittings for fuel system EARL'S PLUMBING
Radiator hoses COOL FLEX
Electric Exhaust cutouts QUICK TIME PERFORMANCE
Chrome mini alternator TUFF-STUFF PERFORMANCE ACCESSORIES
Chrome high torque starter TUFF-STUFF PERFORMANCE ACCESSORIES
7 quart racing oil pan MOROSO PERFORMANCE PRODUCTS INC.
Blown 383 Small block Chevy - 580 hp Keith Craft, Inc.
Crank, rods, blower pistons LUNATI CAMS INC
Aluminum Heads w/ stainless steel valves Brodix
Weiand 250 blower WEIAND
2 650cfm blower carburetors HOLLEY PERFORMANCE PRODUCTS
Velocity stacks K&N Engineering, Inc.
Vintage Valve covers EDELBROCK CORP.
Vintage Moon Breathers HONEST CHARLEY SPEED SHOP
High Temp Coating for Headers & Exhaust – Nitro Plate O'BRIEN TRUCKERS
Interior
Aluminum Bomber seats SPEEDWAY MOTORS INC
Custom upholstery for Bomber seats TRENT'S TRICK UPHOLSTERY
Custom Microphone shifter Purple Hazen
6 gauge instrument bezel with Fender pickguard material SO-CAL SPEED SHOP
6 gauge set SO-CAL SPEED SHOP
Polished stainless steel 32” tilt steering column Flaming River Steering Systems
Polished stainless steel steering shaft and u-joints BORGESON UNIVERSAL CO., INC.
Steering wheel LECARRA INC.
Headlight switch and knobs SO-CAL SPEED SHOP
5 point harnesses CROW ENTERPRISES
Door Panels, carpet, and rumble seat upholstery HOT ROD INSTITUTE
Floor Mats STYLIN' TRUCKS INC.
Power cut-off switch WATSON'S STREETWORKS
Battery Optima yellow top deep cycle OPTIMA BATTERIES
Finned aluminum battery box O'BRIEN TRUCKERS
Wiring Harness ELECTRONIC PROTOTYPES
Paint
Custom "Rat Roaster Green" Paint PPG AUTOMOTIVE REFINISH
Tires
FRONT: 15x5 “Dragmaster” wheels Team III Wheels
FRONT: Firestone Dirt track tires 15x 5.0 COKER TIRE CO. INC.
REAR: 15x10 “Dragmaster” wheels Team III Wheels
REAR: Firestone Cheater Slicks COKER TIRE CO. INC.
Transmission
TKO 5spd transmission KEISLER ENGINEERING INC
Performance clutch, bellhousing, flywheel, pressure plate KEISLER ENGINEERING INC
Heavy Duty Driveshaft DENNY'S DRIVESHAT
